Item # 10-9090RC-0

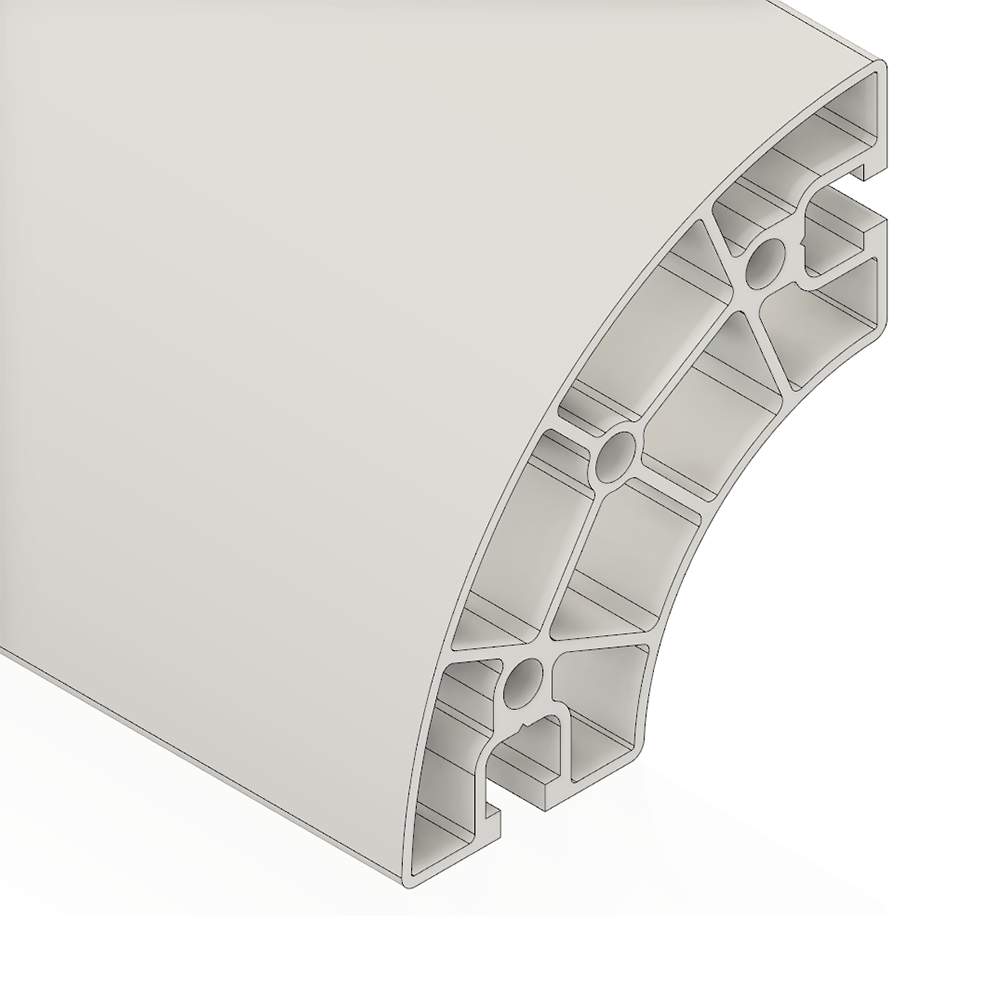

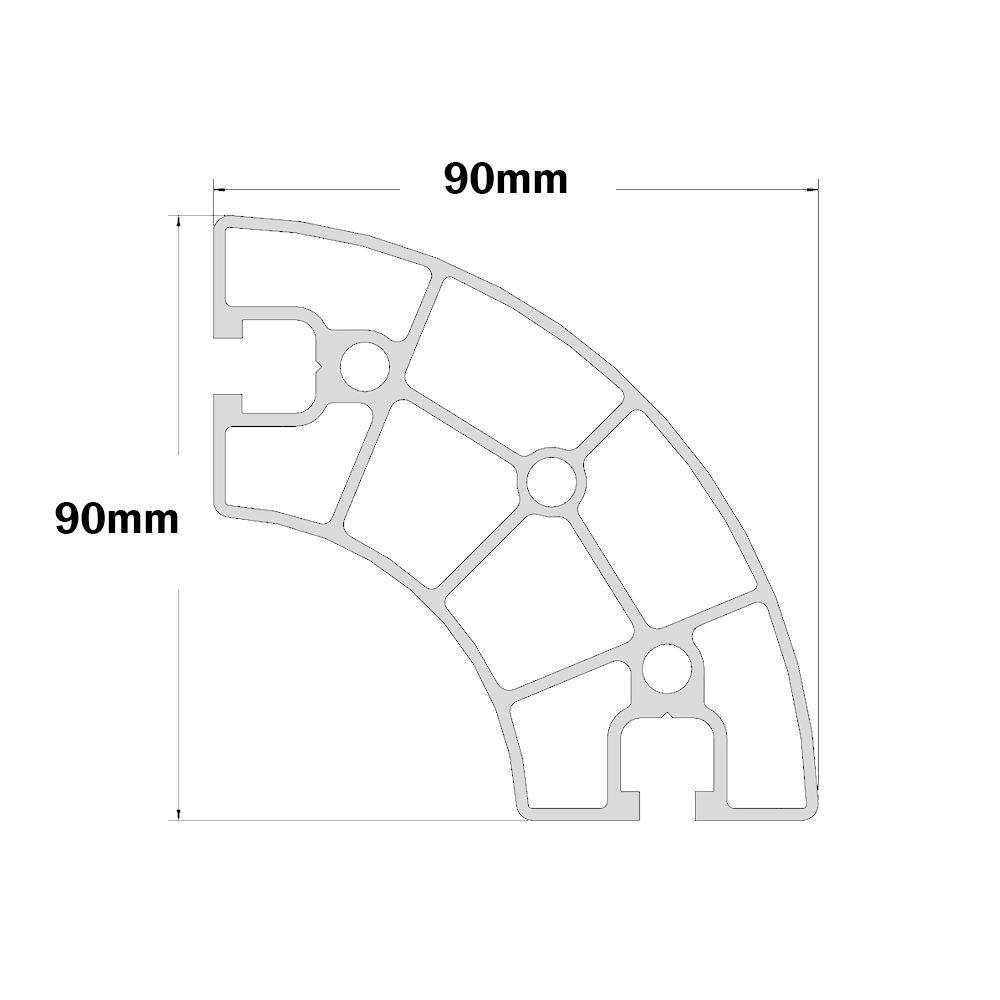

MODULAR SOLUTIONS EXTRUDED PROFILE 90MM X 90MM ROUND CORNER, CUT TO LENGTH
- $22.53 / M
- Manufacturer: MODULAR SOLUTIONS
- UM: M
Configure your aluminum bar length below. Enter Length in millimeters to calculate units and pricing. 1 Unit = 1 Meter. $22.53 per Meter.
General Specifications
| 45MM X 45MM PROFILE | |
| STANDARD 8MM T SLOT | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6063 T6 ANODIZED ALUMINUM |

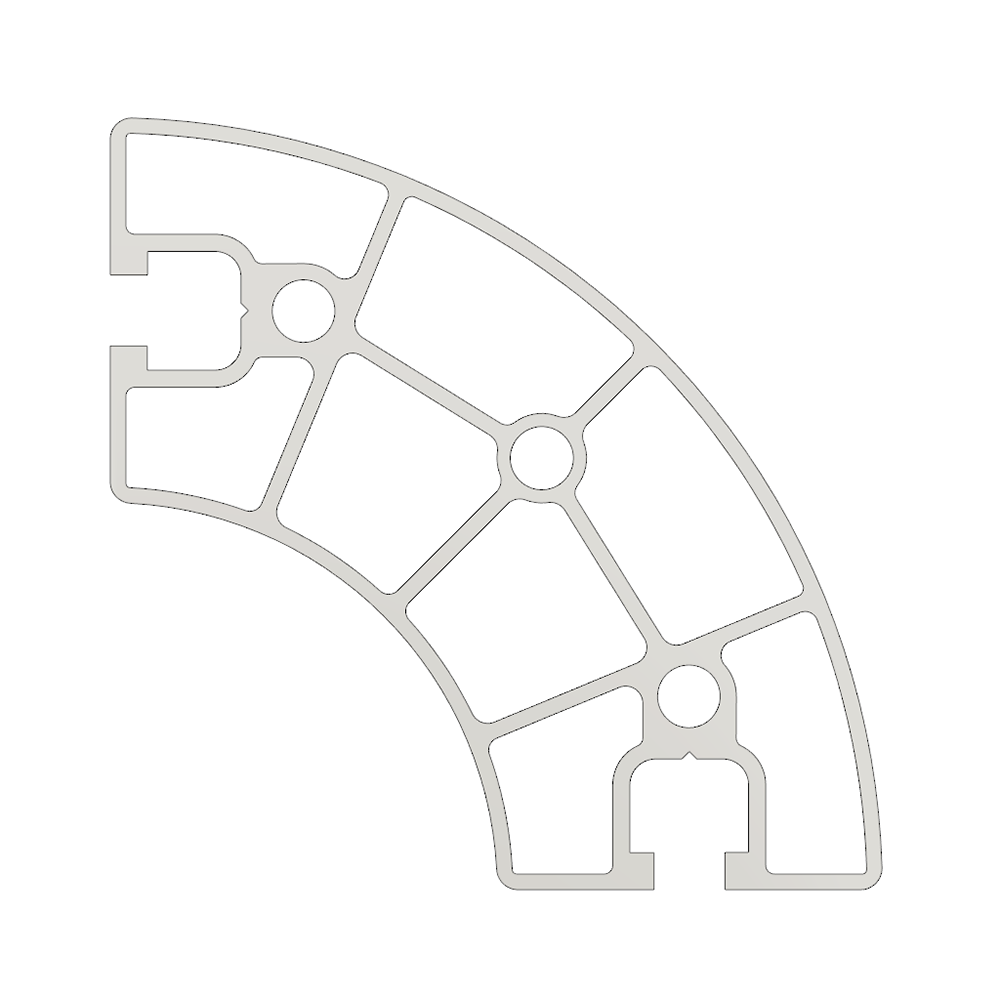

Technical
| IX = 131.72 CM4 | |
| IY = 131.72 CM4 | |
| USE 8MM SELF TAPPING SCREWS - COMES W/ CENTERLINE | |
| END CAP 60-190-1, OR 60-190-2 |
Info
| USE 8MM SELF TAPPING SCREWS - COMES W/ CENTERLINE | |
| END CAP 60-190-1, OR 60-190-2 | |
| BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE |
Click image to enlarge
Item # 10-9090RC-0
MODULAR SOLUTIONS EXTRUDED PROFILE 90MM X 90MM ROUND CORNER, CUT TO LENGTH
- $22.53 / M
- 1 Unit = 1 M
- Manufacturer: MODULAR SOLUTIONS
Length
mm
(Max Length: 6000mm)
Length: 0 M
Total Qty (Bars × Length in M): 0
Total Price (Qty × $22.53): $0.00
Documents
Commonly Used With
Suggested companion parts. Click a card to open the part page in a new tab.

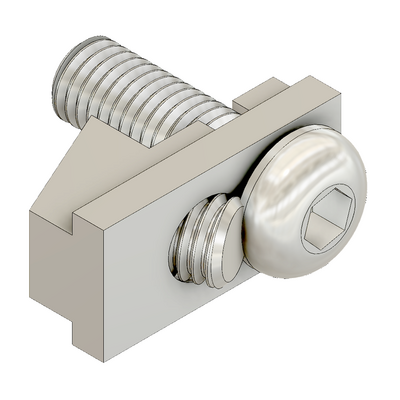

Part # 41-002-0
MODULAR SOLUTIONS PROFILE FASTENER SPEEDLOCK HIDDEN PROFILE CONNECTOR
Part # 60-190-2
MODULAR SOLUTIONS POLYAMIDE PART END CAP FOR 10-9090RC-0

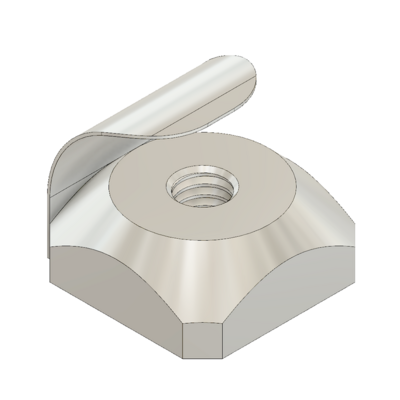

Part # M8S-PF
MODULAR SOLUTIONS ZINC PLATED FASTENER M8 SQUARE NUT W/POSITION FIX

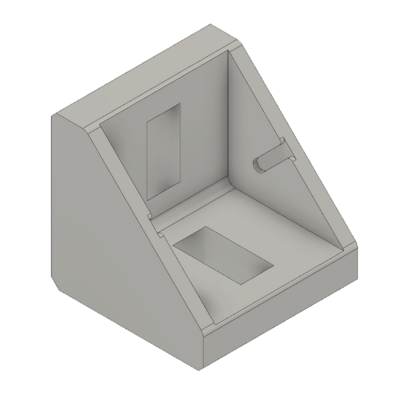

Part # 40-110-1
MODULAR SOLUTIONS ALUMINUM GUSSET 45MM X 45MM ANGLE W/HARDWARE
×
