Item # 10-9550-0

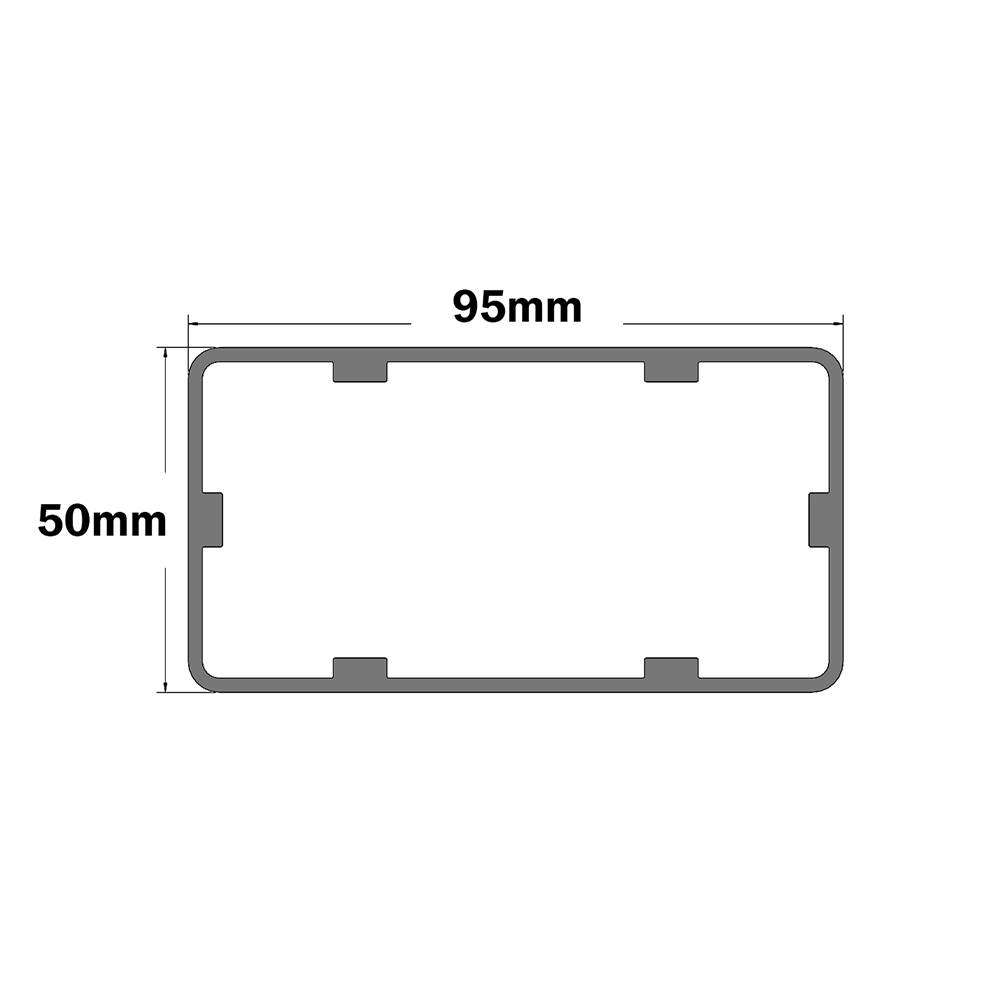

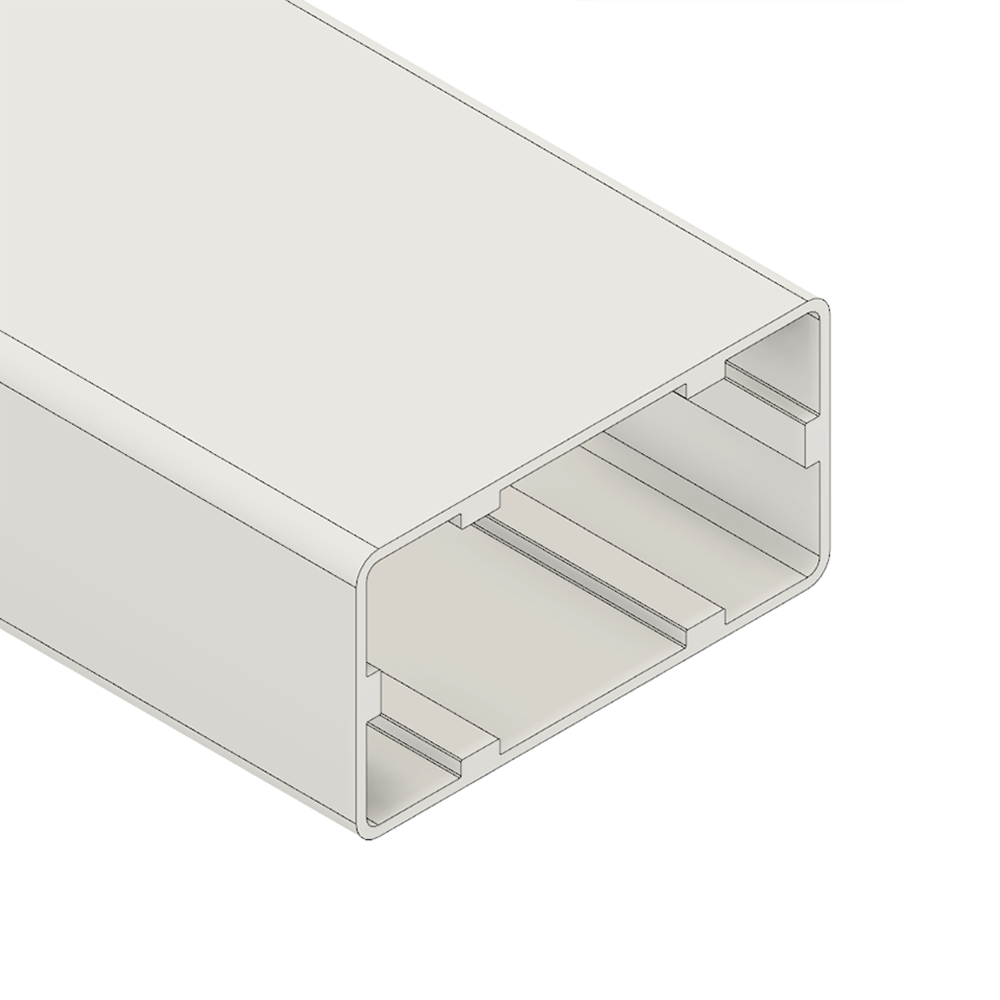

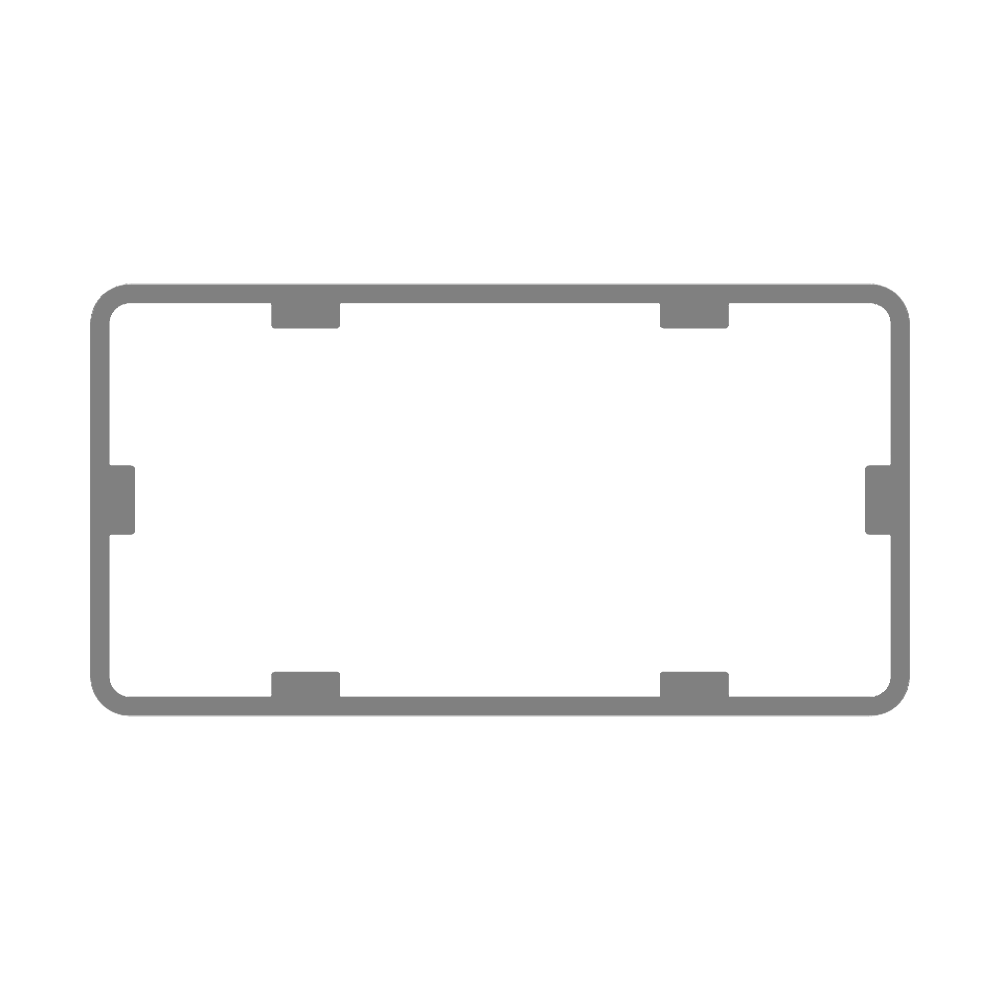

MODULAR SOLUTIONS 95MMX50MM PROFILE SLEEVE FOR 45MMX90MM PROFILE
- $21.66 / M
- Manufacturer: MODULAR SOLUTIONS
- UM: M
- Weight: 4.10
MODULAR SOLUTIONS EXTRUDED PROFILE-95MM X 50MM PROFILE SLEEVE FOR 45MM X 90MM PROFILE
| FEATURES | |
|---|---|
| 95MM X 50MM PROFILE SLEEVE FOR 45MM X 90MM PROFILE | |
| CLEAR COAT ANODIZATION | |
| MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM |
| TECHNICAL | |
|---|---|
| WEIGHT (PER METER): | 4.10 LBS. / 1.86 KG. |
| IX DIM | 28.78 CM4 |
| IY DIM | 79.55 CM4 |
| 6060 T5/T6 SPECIFIC WEIGHT: | 2.70 G/CM³ |
| MODULUS OF ELASTICITY: | E: 68000 N/MM2 |
| SHEAR MODULUS: | G: 26000 N/MM2 |
| EXPANSION HARDNESS: | CA. 70 HB 2.5 / 187.5 |
| ANODIZATION LAYER THICKNESS: | CA. 10 UM |
| 6060 T5/T6 MECHANICAL PROPERTIES | |
|---|---|
| FATIGUE ENDURANCE LIMIT [MPA]: | 70 |
| YIELD STRENGTH [MPA]: | 190 |
| TENSILE STRENGTH [MPA]: | 220 |
| SHEER STRENGTH [MPA]: | 130 |
| HARDNESS BRINELL HB: | 70 |
| INFO | |
|---|---|
| USE WITH PROFILE | 10-4590-0 |
| WORKS AS A SLEEVE OVER 45 X 90 PROFILE | |
| DOES NOT INCLUDE MOUNTING HARDWARE | |
PROFILE # 10-9550-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.
