Item # 10-9090RC-0

MODULAR SOLUTIONS 90MM X 90MM ROUND CORNER

$43.69 / M
Manufacturer: MODULAR SOLUTIONS

UM: M
Weight: 6.81

Order Here Custom CAD Generator Moment Bent Load Calculator

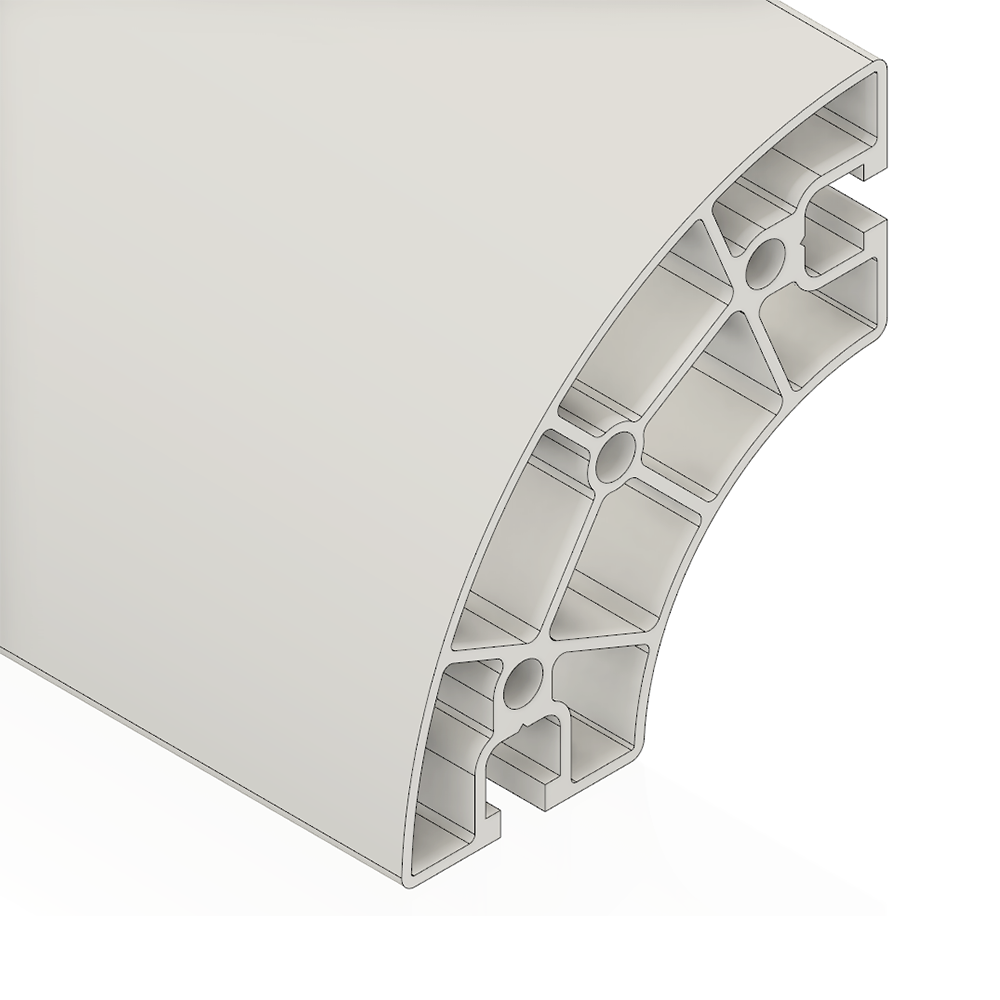

MODULAR SOLUTIONS EXTRUDED PROFILE-90MM X 90MM ROUND CORNER PROFILE

FEATURES

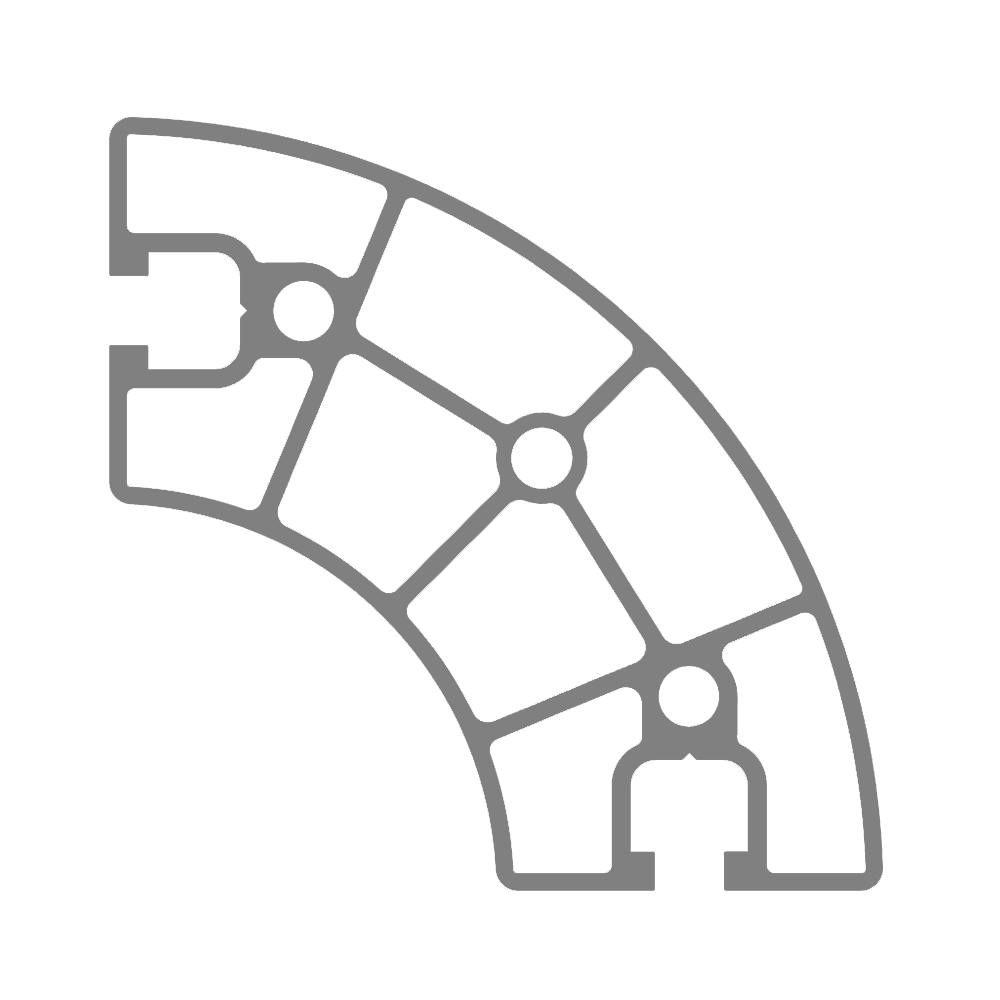

90MM X 90MM ROUND CORNER PROFILE
STANDARD 8MM T SLOT
CLEAR COAT ANODIZATION
MATERIAL: 6060 T5/T6 ANODIZED ALUMINUM

TECHNICAL
WEIGHT (PER METER):	6.81 LBS. / 3.09 KG.
IX DIM	75.20 CM4
IY DIM	75.20 CM4
6060 T5/T6 SPECIFIC WEIGHT:	2.70 G/CM³
MODULUS OF ELASTICITY:	E: 68000 N/MM2
SHEAR MODULUS:	G: 26000 N/MM2
EXPANSION HARDNESS:	CA. 70 HB 2.5 / 187.5
ANODIZATION LAYER THICKNESS:	CA. 10 UM

6060 T5/T6 MECHANICAL PROPERTIES
FATIGUE ENDURANCE LIMIT [MPA]:	70
YIELD STRENGTH [MPA]:	190
TENSILE STRENGTH [MPA]:	220
SHEER STRENGTH [MPA]:	130
HARDNESS BRINELL HB:	70

INFO
USE END CAP	60-190-1 (BLACK)
SPEEDLOCKS & HIDDEN PROFILE FASTENERS	45 SERIES
BASIC STRUCTURAL PROFILE FOR GENERAL PURPOSE
DOES NOT INCLUDE MOUNTING HARDWARE

PROFILE # 10-9090RC-0 IS PART OF The 45 SERIES ALUMINUM PROFILE SYSTEM WHICH IS GREAT FOR LIGHT TO HEAVY DUTY APPLICATIONS AND FOR MANY GENERAL-PURPOSE USES.

PLEASE SEE THE CATALOG FOR MORE INFORMATION
